Concrete Structure
About Construction Method 01
Concrete Structure
Concrete Waterproof & Anti-Corrosive Construction Method
Hybrid Master Coat
This is an eco-friendly composite ceramic coating agent that forms a strong coating film with a nano porous structure by mixing a resin with a unique molecular structure in which water and oil are combined with a hydraulic property ceramic material with excellent water vapor effect. It solves the poor water resistance of existing water-based paints and the non-environmental property of oil-based paints at once. It is a new concept eco-friendly composite ceramic coating agent that maximizes the durability of various concrete structures by completely solving the problems of water-based and oil-based paints, such as swelling and peeling of the coating film in the state of being underwater for a long time, with particularly excellent water vapor performance.
  • Hybrid Master Coat
    Construction Method
  • Characteristics of the​
    Hybrid Master Coat
  • Air-Entraining
    Property
  • KS F 4929
    Standard Products
  • Construction Process
    Chart & Comparison Table
Concrete Structure 01
Hybrid Master Coat Construction Method
Concrete Structure 02
Characteristics of the Hybrid Master Coat​
  • Air entraining property
    (water vapor permeability)
    Due to its excellent air-entraining effect,
    there is no peeling or swelling caused
    by vapor pressure or water pressure
  • Eco-Friendliness
    No organic solvents are used, so no harmful
    gas is generated, and there is no risk of
    human accidents in fires or confined spaces.
  • Durability
    It extends the life of the structure with
    excellent resistance to chloride permeation,
    adhesive power, and abrasion resistance
  • Chemical Resistance
    It is excellent in harsh environments
    such as acid/alkali and chlorine.
  • Water Resistance
    Due to the formation of a strong film,
    there is no softening or staining when
    immersed in water for a long time.
  • Weather Proof
    No change in color or gloss
    even when exposed to UV rays
  • Fouling Resistance
    It is suitable for maintenance of road
    facilities, tunnels, underground roads, etc. due
    to its strong resistance to pollutants in the air
  • Construction
    As a product that does not use organic solvents,
    workers are not exposed to harmful and
    toxic gases during work, and it is possible to use
    various painting equipment for construction
Concrete Structure 03
Air Entraining Property

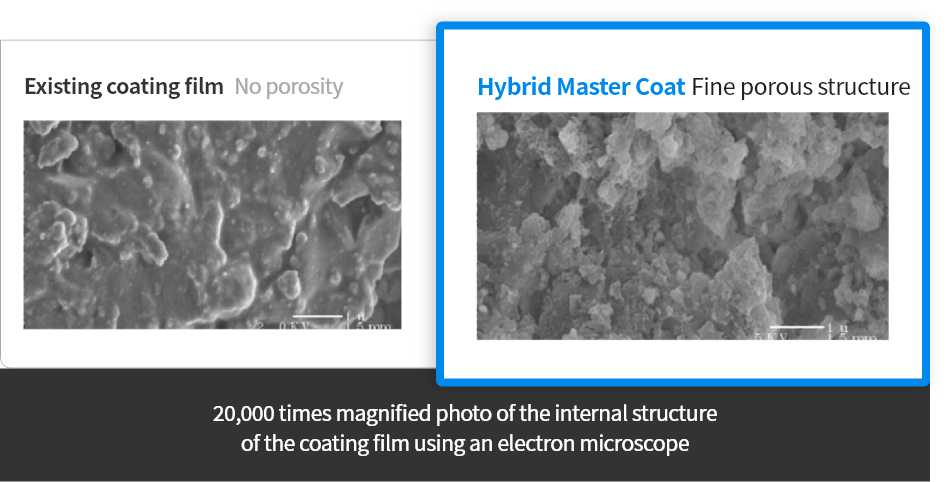

Air entraining principle

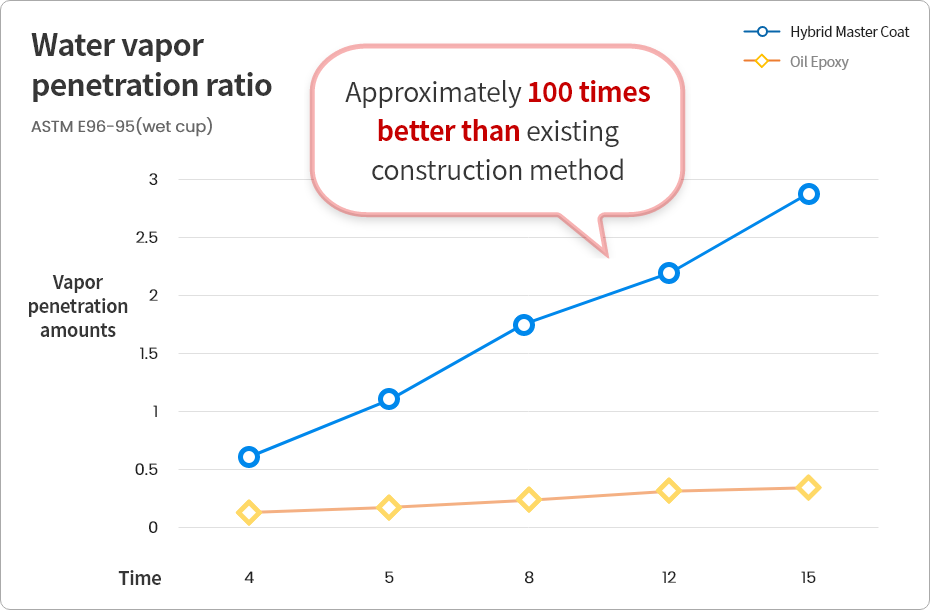

Air entraining effect
Concrete Structure 04

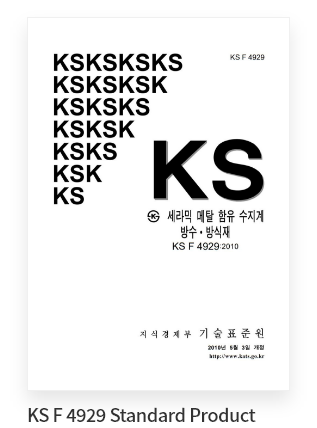

KS F 4929 Standard Product
Korean Industrial Standard KS F 4929:2010
Ceramic metal-containing resin-based
waterproof & anti-corrosive material
1. Application Scope
This standard is applied to a ceramic metal-containing waterproof and anti-corrosive material
(hereinafter, waterproof and anti-corrosive material) applied to the inner and outer surfaces of
concrete and structural steel (tanks, sluice gates, pipes, valves, steel water tanks, etc.) for the
purpose of waterproofing and anti-corrosion of a structure.
Test Performance Comparison Table
Test item
Unit
Management standard
Test result
Judgment
Test Method
KS F
4929 : 2010
  • Appearance
    -
    There will be nothing wrong
    All right
    Pass
  • Adhesion Performance - Standard
    N/㎟
    Standard 2.5 or higher
    3.52
    Pass
  • Adhesion performance - absorption
    N/㎟
    Absorption 2.5 or more
    3.86
    Pass
  • Bending resistance
    -
    No cracks and peeling
    All right
    Pass
  • Impact resistance
    -
    No cracks and peeling
    All right
    Pass
  • Permeability resistance performance
    -
    It must not be permeated
    All right
    Pass
  • Chloride ion permeation
    resistance performance
    ㎜
    3㎜ or less
    0
    Pass
  • Moisture resistance
    -
    No rust, swelling, or peeling
    All right
    Pass
  • Low-temperature high-temperature
    repetition resistance performance
    -
    No cracks and peeling
    All right
    Pass
  • Tensile strength (untreated)
    N/㎟
    16 or higher
    18
    Pass
  • Elongation ratio (untreated)
    %
    9 or higher
    11
    Pass
  • Tensile strength ratio (alkaline treated)
    %
    85 or higher
    85
    Pass
  • Elongation ratio (alkaline treated)
    %
    85 or higher
    147
    Pass
  • Tensile strength ratio (acid treated)
    %
    85 or higher
    89
    Pass
  • Elongation ratio (acid treated)
    %
    70 or more
    96
    Pass
  • Taste
    -
    There will be nothing wrong
    All right
    Pass
  • Smell
    -
    There will be nothing wrong
    All right
    Pass
  • Chromaticity
    도
    0.5 or less
    0.2
    Pass
  • Turbidity
    NTU
    0.2 or less
    0.03
    Pass
  • Mercury
    mg/L
    0.0001 or less
    Non-detection
    Pass
  • Reduced amount of residual chlorine
    mg/L
    0.7 or less
    0.10
    Pass
  • 1,2-
    dichloroethane
    mg/L
    Less than 0.0004
    Non-detection
    Pass
  • 1,1-
    dichloroethylene
    mg/L
    Less than 0.003
    Non-detection
    Pass
  • 1,1,2-
    trichloroethane
    mg/L
    Less than 0.0006
    Non-detection
    Pass
  • Trichlorethylene
    mg/L
    Less than 0.003
    Non-detection
    Pass
  • Benzene
    mg/L
    Less than 0.001
    Non-detection
    Pass
  • 1,1,1-
    trichloroethane
    mg/L
    Less than 0.001
    Non-detection
    Pass
  • Dichloromethane
    mg/L
    Less than 0.002
    Non-detection
    Pass
  • CIS-1,2-dichloroethylene
    mg/L
    Less than 0.004
    Non-detection
    Pass
  • Tetrachlorethylene
    mg/L
    Less than 0.001
    Non-detection
    Pass
  • Epichlorohydrin
    mg/L
    Less than 0.01
    Non-detection
    Pass
  • Vinyl acetate
    mg/L
    Less than 0.01
    Non-detection
    Pass
  • Styrene
    mg/L
    Less than 0.002
    Non-detection
    Pass
  • 1,2-butadiene
    mg/L
    Less than 0.001
    Non-detection
    Pass
  • 1,3-butadiene
    mg/L
    Less than 0.001
    Non-detection
    Pass
  • N,N-dimethylaniline
    mg/L
    Less than 0.001
    Non-detection
    Pass
  • Phenols
    mg/L
    Less than 0.0005
    Non-detection
    Pass
  • Cyan
    mg/L
    Less than 0.001
    Non-detection
    Pass
  • Potassium permanganate
    consumption amount
    mg/L
    Less than 1.0
    0.3
    Pass
  • 2,4-toluenediamine
    mg/L
    Less than 0.002
    Non-detection
    Pass
  • 2,6-toluenediamine
    mg/L
    Less than 0.001
    Non-detection
    Pass
  • Toluene diisocyanate
    mg/L
    It must not be detected
    Non-detection
    Pass
Concrete Structure 05
Construction Process Chart & Comparison Table

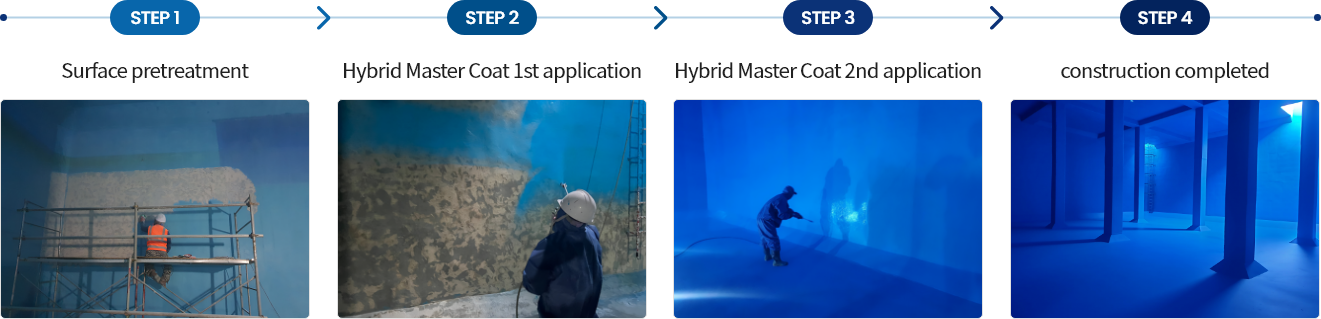

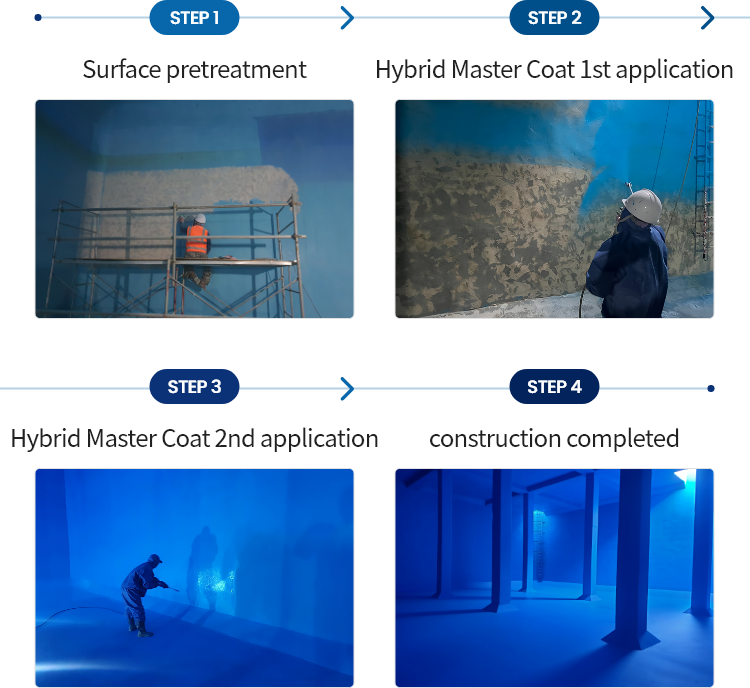

Construction Process Chart
Concrete Waterproof & Anti-Corrosion Series Comparison Table
Division Hybrid Master Coat eco-friendly
composite ceramic coating construction method		 Ceramic waterproof construction method Polyurea waterproof construction method
Construction
method
overview		 It is an eco-friendly composite ceramic coating construction method with excellent air entraining effect (water vapor) due to the molecular structure in which water and oil are combined. It is a new concept of waterproof and anti-corrosive construction method that perfectly solves the problems of existing water-based and oil-based paints such as coating disbondment, swelling, poor water resistance, and staining of the coating film in the state of long-term immersion in water. It is a ceramic coating agent made of ceramic resin, inorganic pigment, fluororesin, etc. It is a waterproof coating method that can improve the properties such as chemical resistance and high hardness due to the fluororesin contained. It is an eco-friendly ultra-fast two-liquid-type and non-solvent type product, and it uses construction method forming a smooth elastic coating with a strong and high density through mixed injection under high temperature and high pressure conditions.
Advantages
  • Excellent water resistance and chemical resistance
  • The air entraining effect(water vapor) of the dry film is excellent, so there is no lifting or swelling of the film when immersed in water for a long time.
  • It has high Life Cycle Cost (LCC) due to excellent adhesive power and durability
  • It is completely non-toxic and eco-friendly product (paint thinner is not used during construction)
  • Waterproof & anti-corrosion, anti-salt, anti-neutralization, and anti-corrosion effects are excellent.
  • Prevention of contamination & minimization of pretreatment
  • It has an excellent compatibility with existing coatings.
  • It is easy to maintain because it has less contamination and moss attachment thanks to the addition of anti-fouling function.
  • It has variety of utilization according to customized configuration
  • Due to its velocity per second hardening, it is possible to shorten the construction period
  • Excellent chemical resistance
  • It has an excellent waterproofing effect as there is no joint.
  • It has outstanding durability due to its excellent mechanical properties.
  • It has wide range of construction temperature.
Disadvantages
  • It is a three-liquid type product, so uniform mixing is required.
  • It needs to be careful for the temperature during winter storage.
  • There is no air entraining effect, so there is coating swelling.
  • Its water resistance decreases when immersed in water for a long time.
  • The construction safety decreases due to the using organic solvents such as thinner during construction.
  • There is a difficulty in re-coating due to anti-fouling function.
  • It has poor workability due to high number of coatings
  • There is no air-entraining effect, so there is a phenomenon of swelling of the coating film
  • It needs dedicated high-temperature and high-pressure equipment.
  • It needs skilled workers for constant coating construction
  • In the event of a defect, it is difficult to do partial repair and high cost is incurred.
  • There are restrictions in the working environment due to the use of special equipment
Quality
performance
  • It is designated as an excellent procurement product
  • It satisfies all the items of KS F 4929.
  • Performance certification, eco-friendly certification, and quality certification (Q-mark)

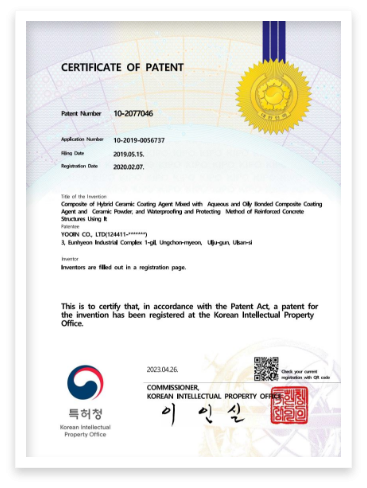

  • Possession of KC certification and many patents
  • It satisfies KS F 4929
  • KC certification (for waterworks)
  • Possession of multiple patents
  • Eco-friendly certification
  • KC certification (for waterworks)
  • Possession of patent
Conclusion * Due to its excellent adhesion, water resistance, and air entraining effect, there is no softening or staining when immersed in water for a long time, and there is no lifting or swelling of the coating film caused by water pressure or steam pressure. So, the eco-friendly composite ceramic Hybrid Master Coat construction method, which has an excellent structure protection effect and a high LCC (Life Cycle Cost), is recommended.
※The above table is a standard comparison table for each category and there may be difference in a specific construction method. Please contact the head office for details.
